Real-Time NIR Measurement

Precision moisture
measurement for
demanding processes

The QN-100 delivers continuous, non-contact near-infrared moisture measurement for bulk solids, powders, and granular materials — giving you accurate, real-time data directly on the production line without interrupting the process.

QN-100 NIR Sensor
Live
4.23%
Moisture Content
Status
Running ✓
Firmware
NIR v2.07
Temperature
32.4 °C
4–20 mA Out
8.14 mA
±0.05%
Measurement accuracy
3
NIR filter channels
3×
4–20 mA analogue outputs
IP65
Sensor enclosure rating
Why QN-100

Built for the demands of real industrial environments

The QN-100 combines high-accuracy NIR optics with a practical, engineer-friendly design. From the integrated touchscreen HMI to the auto-balance optical setup routine, every aspect is built to make installation, calibration, and daily operation as straightforward as possible — without compromising on measurement performance.

🔬

Non-Contact NIR Measurement

The QN-100 uses near-infrared light to measure moisture content without touching the product. No moving parts in contact with the process means no wear, no contamination risk, and no process interruption.

⚡

Real-Time Continuous Output

The sensor delivers a continuously updated moisture reading with a configurable damping filter for stable output. Three 4–20 mA analogue outputs feed directly into your control system for closed-loop drying or mixing control.

🖥️

Integrated HMI Touchscreen

A built-in colour touchscreen displays live moisture readings, a 60-minute scrolling trend chart, and full calibration and system configuration — all on the sensor itself, no separate panel required.

🔌

Multiple Fieldbus Protocols

Supports Profinet, Profibus DP, EtherNet/IP, Modbus TCP, and EtherCAT — making integration with virtually any industrial PLC or DCS straightforward. Protocol is specified at the time of order.

📊

Up to 3 Measurement Channels

In addition to moisture, the QN-100 can be configured to simultaneously measure up to two additional components — including oil content, coat weight, or basis weight — using the same NIR optical system.

🛡️

Rugged IP65 Enclosure

The IP65-rated sensor housing is suited to dusty, humid, and washdown environments. The optical window is manufactured from robust sapphire or borosilicate glass for long service life.

Applications

Trusted across a wide range of industries

The QN-100 is installed across a broad range of manufacturing sectors wherever accurate, continuous moisture measurement of bulk solids or powders is critical to product quality and process efficiency.

🌾

Food & Beverage

Moisture control in cereals, grains, snacks, baked goods, and food ingredient processing lines.

🐾

Animal Feed

In-line moisture measurement during pelleting, drying, and cooling in compound feed and pet food manufacture.

⚗️

Chemical & Pharma

Precise moisture monitoring in pharmaceutical granules, chemical powders, and active ingredient drying processes.

🏗️

Building Materials

Real-time moisture measurement of sand, aggregates, minerals, and cement raw materials in quarrying and processing.

♻️

Plastics & Recycling

Moisture measurement of plastic granules and recycled material prior to extrusion or moulding to prevent defects.

🌿

Biomass & Energy

Continuous moisture monitoring of wood chips, wood pellets, and biomass fuels for quality and calorific value control.

🌾

Milling & Flour

Moisture optimisation during wheat tempering, flour milling, and grain conditioning for consistent product quality.

🏭

General Industry

Suitable for any bulk solid or granular material drying process where moisture content must be continuously monitored.

🌿

Tobacco

Precise moisture measurement during tobacco leaf processing, conditioning, and drying to maintain product quality and compliance.

📄

Paper

Continuous moisture monitoring of paper pulp and finished sheets during production and drying to ensure consistent product quality and prevent moisture-related defects.

🔄

Converting

Real-time moisture measurement during paper converting, laminating, and coating processes for consistent finish quality and dimensional stability.

Ready to see the QN-100 in action?

Speak to our applications team to find out how the QN-100 can improve consistency and reduce waste in your process.

QN-100 NIR Moisture Sensor

Technical Specifications

Full technical specifications for the QN-100 NIR Moisture Sensor — designed for continuous, non-contact moisture measurement in industrial bulk solids and powder processes.

Product Overview

QN-100 NIR Moisture Sensor

The QN-100 is a rugged, industrial-grade near-infrared moisture sensor designed for continuous, real-time measurement of moisture content in bulk solids, powders, and granular materials. Using precision NIR filters, the sensor measures the characteristic absorption of moisture in the near-infrared spectrum without any contact with the product.

The integrated HMI touchscreen provides live readings, a 60-minute trend chart, and full on-sensor calibration and configuration. Three 4–20 mA analogue outputs and a choice of industrial fieldbus protocols — Profinet, Profibus DP, EtherNet/IP, Modbus TCP, and EtherCAT — ensure straightforward integration into existing control architectures. The IP65-rated sensor housing is built for the demands of continuous industrial operation.

At a Glance
TechnologyNear-Infrared (NIR)
Measurement ModeNon-contact, diffuse reflectance
Primary OutputMoisture (%)
Accuracy±0.05 % (typical)
Analogue Outputs3 × 4–20 mA
Enclosure (Sensor)IP65 (NEMA 4)
Supply Voltage230 VAC or 24 VDC
FieldbusProfinet / Profibus / EtherNet/IP / Modbus / EtherCAT

Real-World Applications

The QN-100 is deployed across diverse industrial processes and integration points, delivering accurate moisture measurement where it matters most.

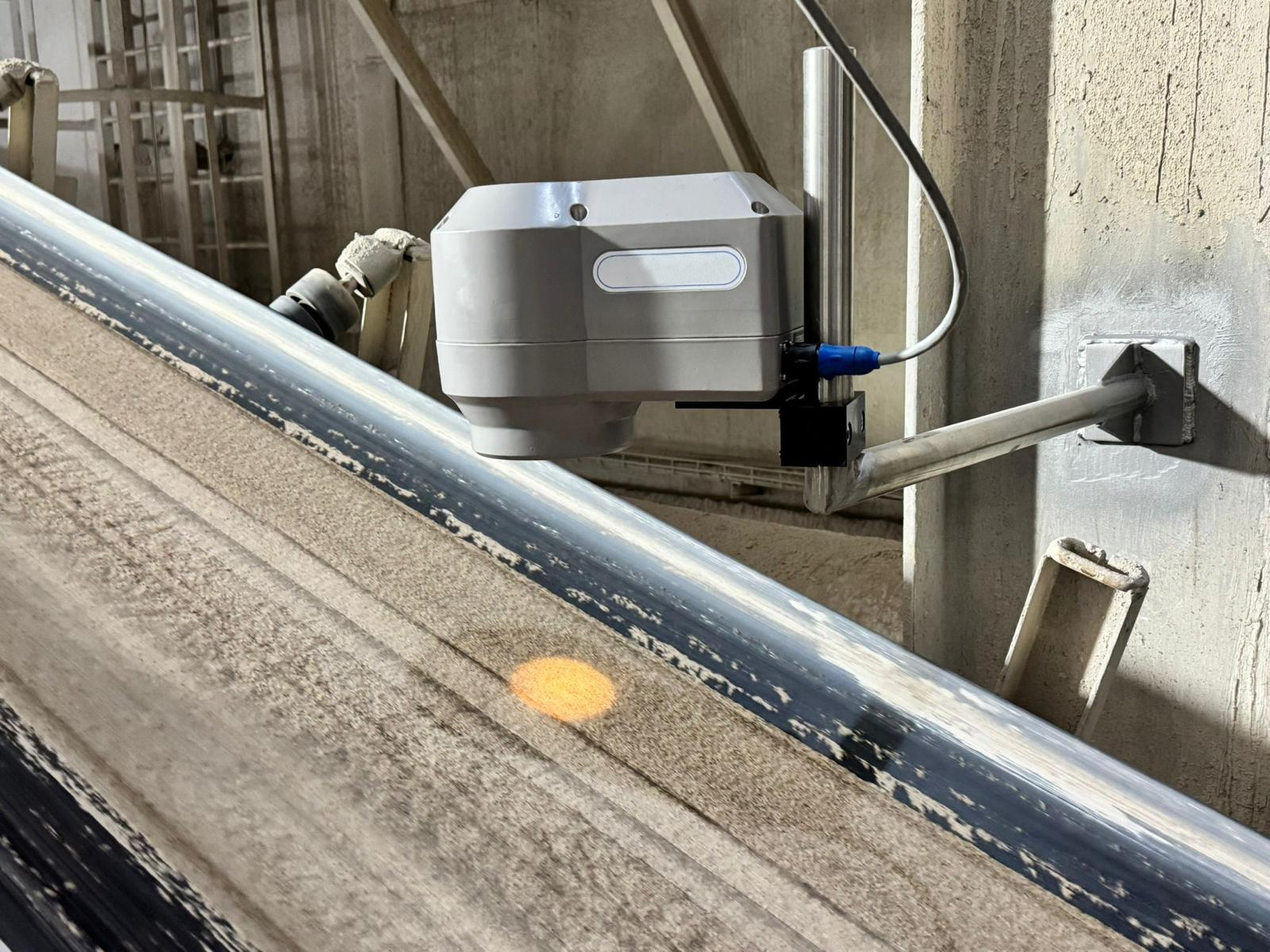

Conveyor Integration

Conveyor Integration

Direct in-line moisture measurement of finished products on drying conveyor systems with integrated process feedback and control.

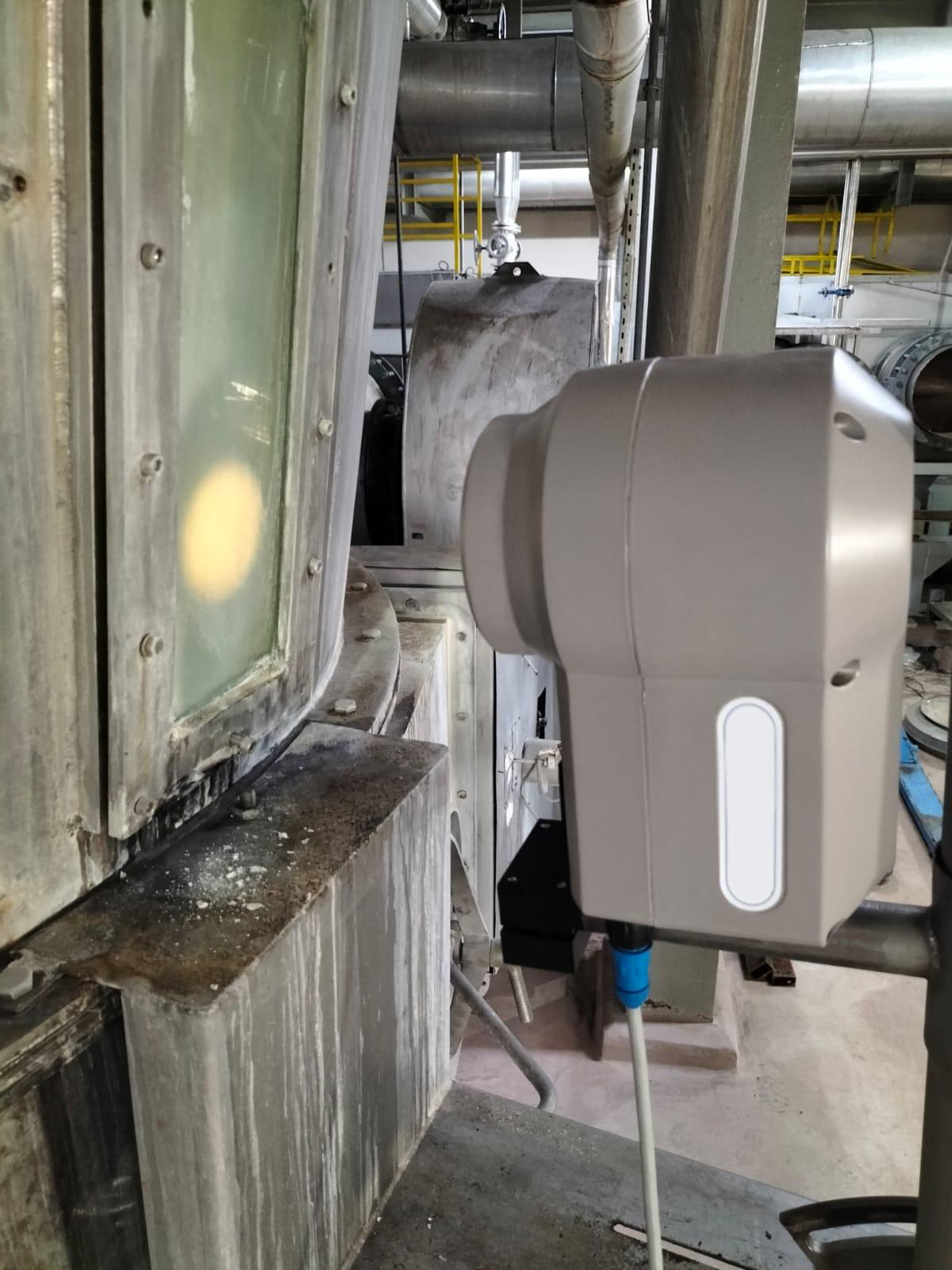

Hopper Monitoring

Hopper Monitoring

Real-time moisture measurement through transparent optical window for in-silo quality control and batch release decisions.

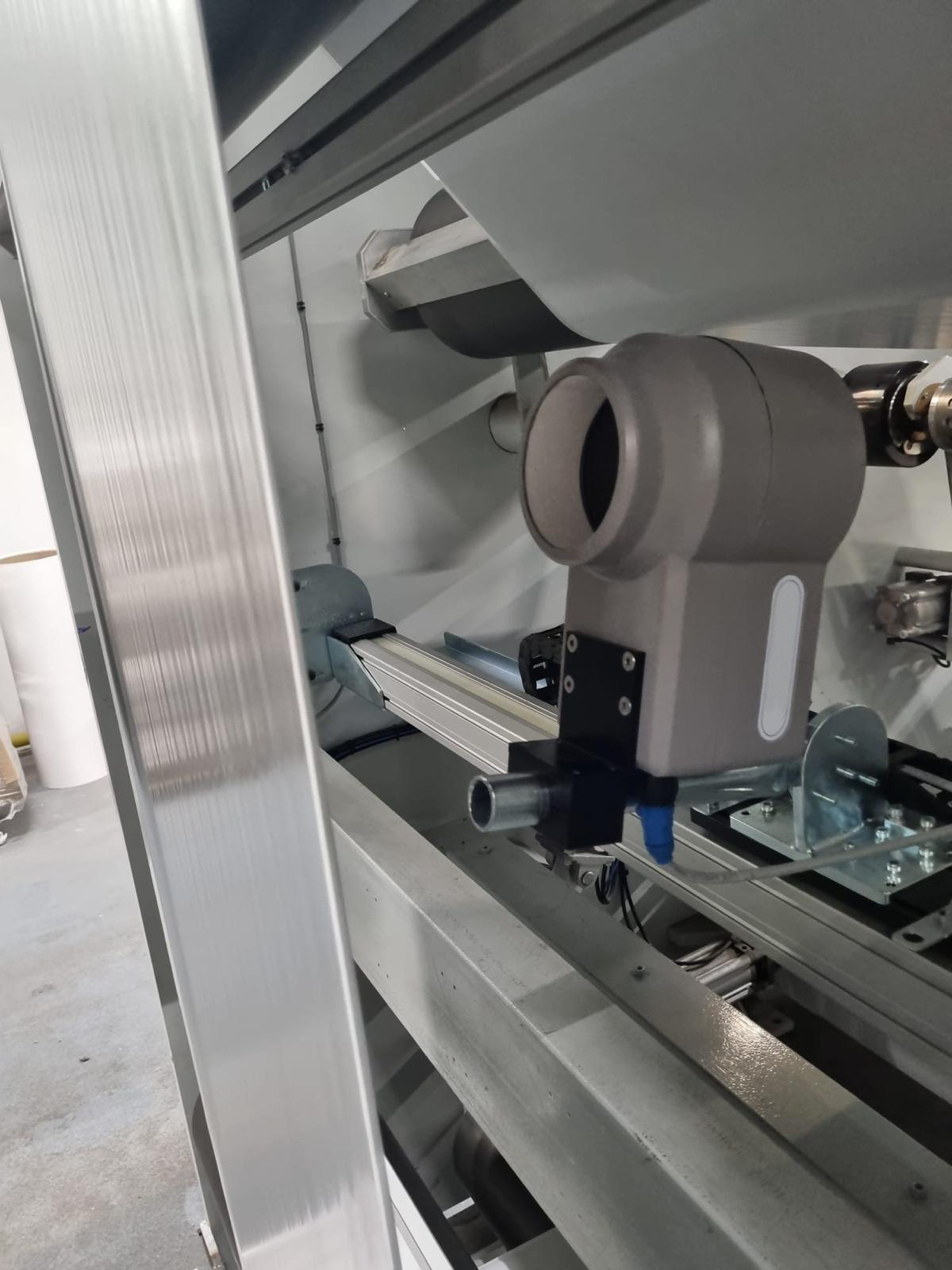

Precision Sensor Head

Precision Sensor Head

Ruggedised optical and electronic design engineered for stable operation in demanding industrial environments with reliable long-term performance.

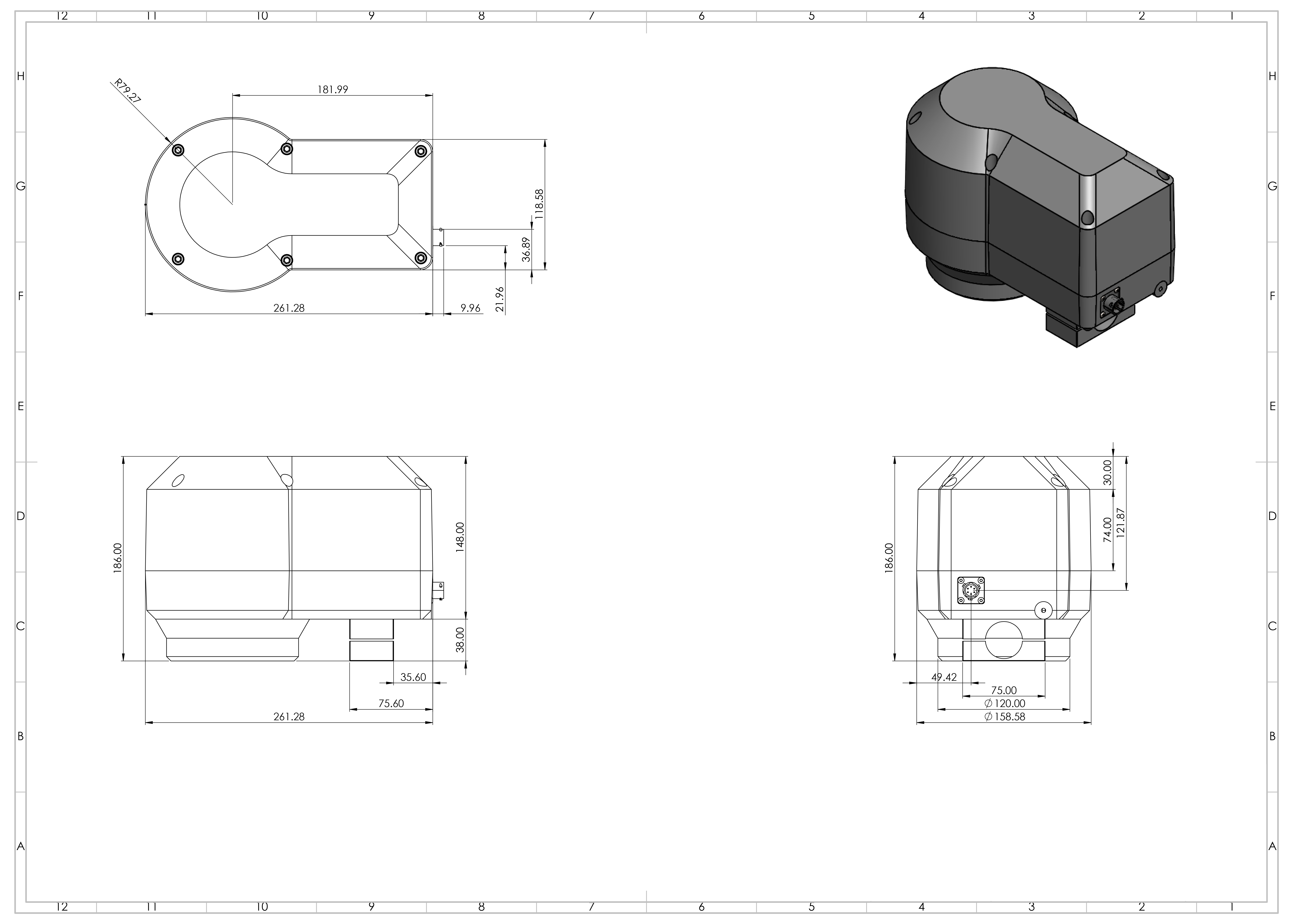

Technical Dimensions

Complete engineering drawings and dimensional data for installation planning, integration design, and procurement specifications.

QN-100 Technical Dimensions and CAD Drawings
Full Specifications

Detailed Technical Data

Performance
Measurement Range0 to 30 % Low Moisture, 30 to 90% High Moisture
Accuracy±0.05 % moisture (typical)
Repeatability±0.02 % moisture (1σ, stable conditions)
Resolution3 decimal places
Response TimeConfigurable (damping filter 1 - 10 s typical)
Update Rate10 Hz internal; output updated continuously
Calibration MethodTwo-point laboratory reference
Stored CalibrationsUp to 256 product calibrations
Optical / NIR
TechnologyNear-infrared (NIR), diffuse reflectance
Light SourceTungsten halogen lamp
Lamp Life> 20,000 hours (typical)
Filter 1Reference channel
Filter 2Moisture measurement channel
Filter 3Reference channel
DetectorPbs photodetector
Standoff Distance250–450 mm from window face
Electrical
Supply Voltage230 VAC 0r 24 VDC
Power Consumption< 30 W (sensor + HMI combined)
Analogue Outputs3 × 4–20 mA (isolated)
AO Resolution16-bit DAC
AO Accuracy±0.1 % full scale
Digital Outputs3 × NPN/PNP, 24 V DC
Digital Inputs4 × 24 V DC
ProtectionReverse polarity, overvoltage protected
Environmental & Physical
Operating Temperature0 to +60 °C
Storage Temperature-20 to +70 °C
Humidity10 to 90 % RH, non-condensing
Enclosure (Sensor)IP65 (NEMA 4)
Enclosure (HMI)IP54 (NEMA 12)
HMI Display7″ colour TFT touchscreen
CertificationsCE marked, RoHS compliant
Communications & Fieldbus
HMI InterfaceIntegrated 7″ colour touchscreen; USB service port
Fieldbus OptionsProfinet, Profibus DP, EtherNet/IP, Modbus TCP, EtherCAT (specify at order)
Ethernet10/100 BaseT, RJ45 connector
IP ConfigurationStatic IP or DHCP, configurable via HMI
Data EndiannessBig-endian or Little-endian (configurable via HMI)
Process DataUp to 3 measurement values available on fieldbus
